Motor Control Center (MCC) Panels

MCC panels group motor control and protection circuits in a central assembly. Typical feeders may use direct-on-line, star-delta, soft-starter, or variable-frequency-drive arrangements where required by the motor and application.

Description

Overview

MCC panels group motor control and protection circuits in a central assembly. Typical feeders may use direct-on-line, star-delta, soft-starter, or variable-frequency-drive arrangements where required by the motor and application.

Typical applications

Common applications include building, infrastructure, and industrial installations where the electrical distribution or control scope matches the approved project requirements.

Configuration options

  • Motor feeder schedule
  • Starter type
  • Control voltage
  • Local/remote controls
  • Communication requirements

Technical information

Project-specific ratings and dimensions are stated in the quotation or approved product data for the requested configuration. Please request these details before specification or purchase.

Rated voltage To be stated in the quotation
Rated current To be stated in the quotation
Short-circuit withstand To be stated in the quotation
Ingress protection To be stated in the quotation
Dimensions To be stated in the quotation
Applicable standard Applicable standard and edition to be confirmed

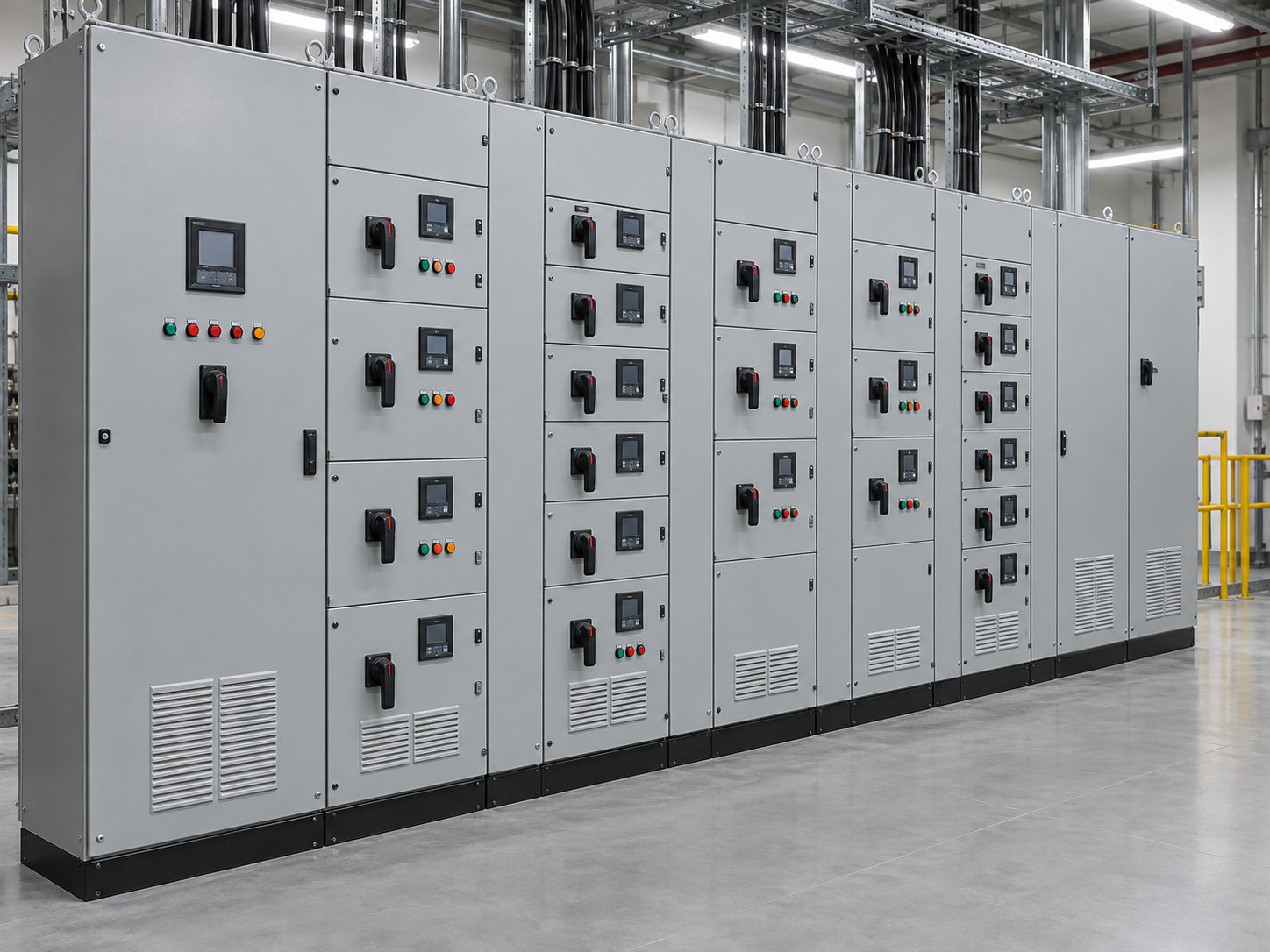

Product imagery is illustrative and AI generated. Confirm the supplied product, construction, ratings, accessories, and compliance against the approved quotation and datasheet.
